OMEGA HF compressed air filters provide high efficiency filtration of different diameter particles, water, oil and oil aerosols, hydrocarbons and unwanted odors in the aluminum body at 50 bar pressure resistance.

It can be produced with 6 different filter elements according to the ISO 8573-1 air standard. Automatic condensate drains are required for efficient condensate drainage from the filter body.

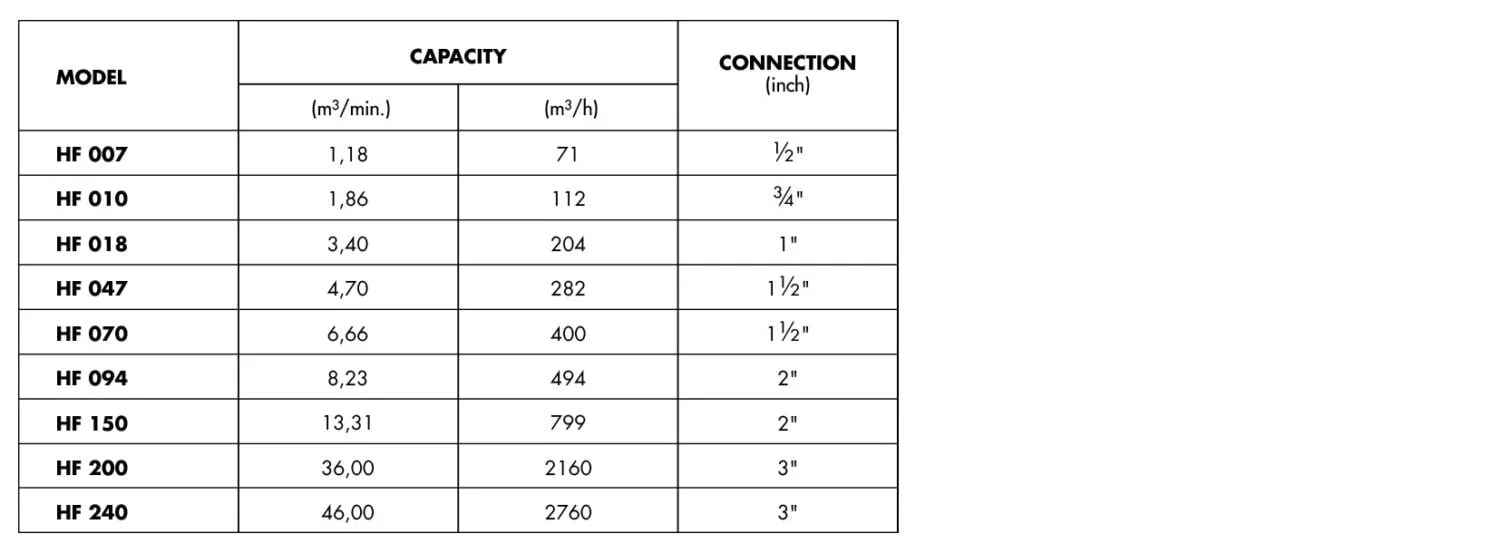

PRODUCT CHART

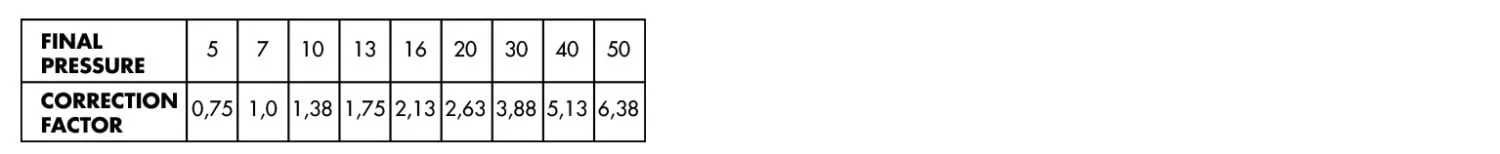

CORRECTION FACTORS

TECHNICAL FEATURES

ALIMINIUM

  • Application Pressure: 50 bar
  • Capacity Range: 71 – 2760 Nm3 / h
  • Connection: 1/2” – 3”
  • Application Temperature: 1,5 – 65°C

Warning: Filter elements should be changed in 8000 hours or once a year

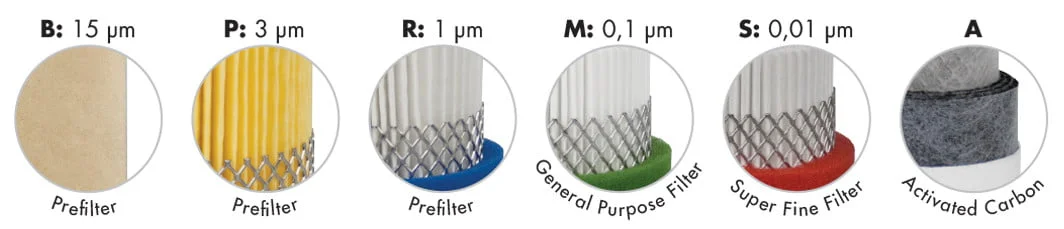

FILTER ELEMENTS
