PRODUCT RANGE

Note: Without Bracket design pumps can be produced with only threaded connection

TECHNICAL FEATURES
  • Max. Capacity: 26m3/h
  • Max. Diffr. Pressure: 7 Bar
  • Max. Viscosity: 2.500 cSt
  • Temperature Range: -20°C to + 180°C
OTHER FEATURES
  • Application variety with 8 different case size
  • Can be apply many different material options (cast iron, ductile iron, cast steel or stainless steel)
  • Operation low and medium viscosity
  • Self-priming is up to 720 mbar
  • No need gearbox for low viscosity applications

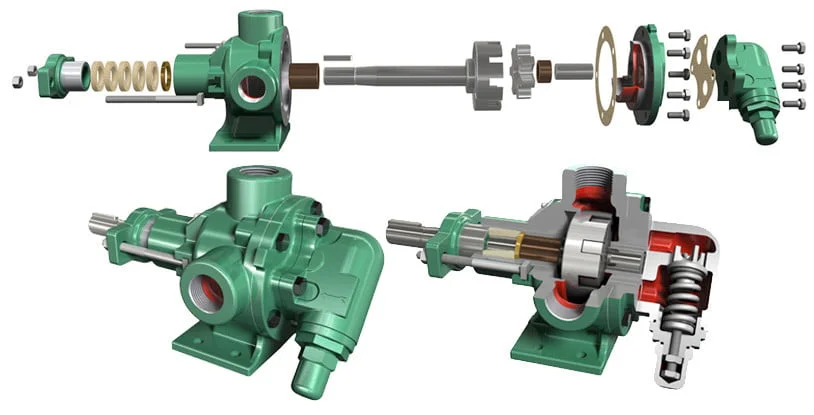

  • The pump design is suitable for lip seal, packing gland and mechanical seal
  • It is economical solution with direct coupling
