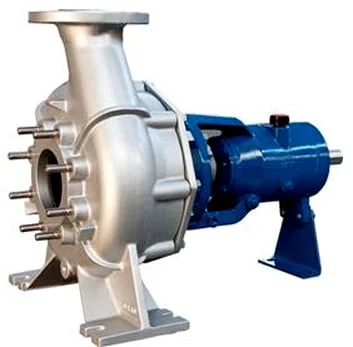

Simple and modular construction with bearing bracket in according to ISO 2858-5199 norms. Discharge sizes from DN 32 to DN 250. Large free passage clearance up to 150 mm due to the completely recessed impeller. Heavy duty shaft and bearings. Only 4 bearing brackets for the whole range. Only 1 casing cover fits every seal arrengement.

USE

RC pumps can handle chemical and crystalline suspensions, all viscous liquid, liquid with high concentrations of fibrous suspensions, municipal and industrial wastewater, every kind of sludge. They are also used in textile, tannery, refineries, general industrial service, pulp and paper industry, foodstuffs industry, sugar industry, sea water desalination plants, absorption equipment in environmental engineering, power stations and steel industry.
TECHNICAL FEATURES
  • Max. Flow Rate: 850 m3/h
  • Max. Head: 60 mwc
  • Max. Pressure: 10 Bar
  • Max. Temperature: 220°C
Materials
  • Standard: AISI 316 SS (CF8M) – G25 Cast Iron
  • On request: Duplex (SAF 2205 + SAF 2507) AISI 304L, SANICRO 28, Hastelloy, Monel, Durimet, Carpenter and other alloys on specification.
