SCHMITT THERMOPLASTIC CENTRIFUGAL PUMPS
(max. 150 m3/h flow, max. 60 mSS, max. 150 ºC)

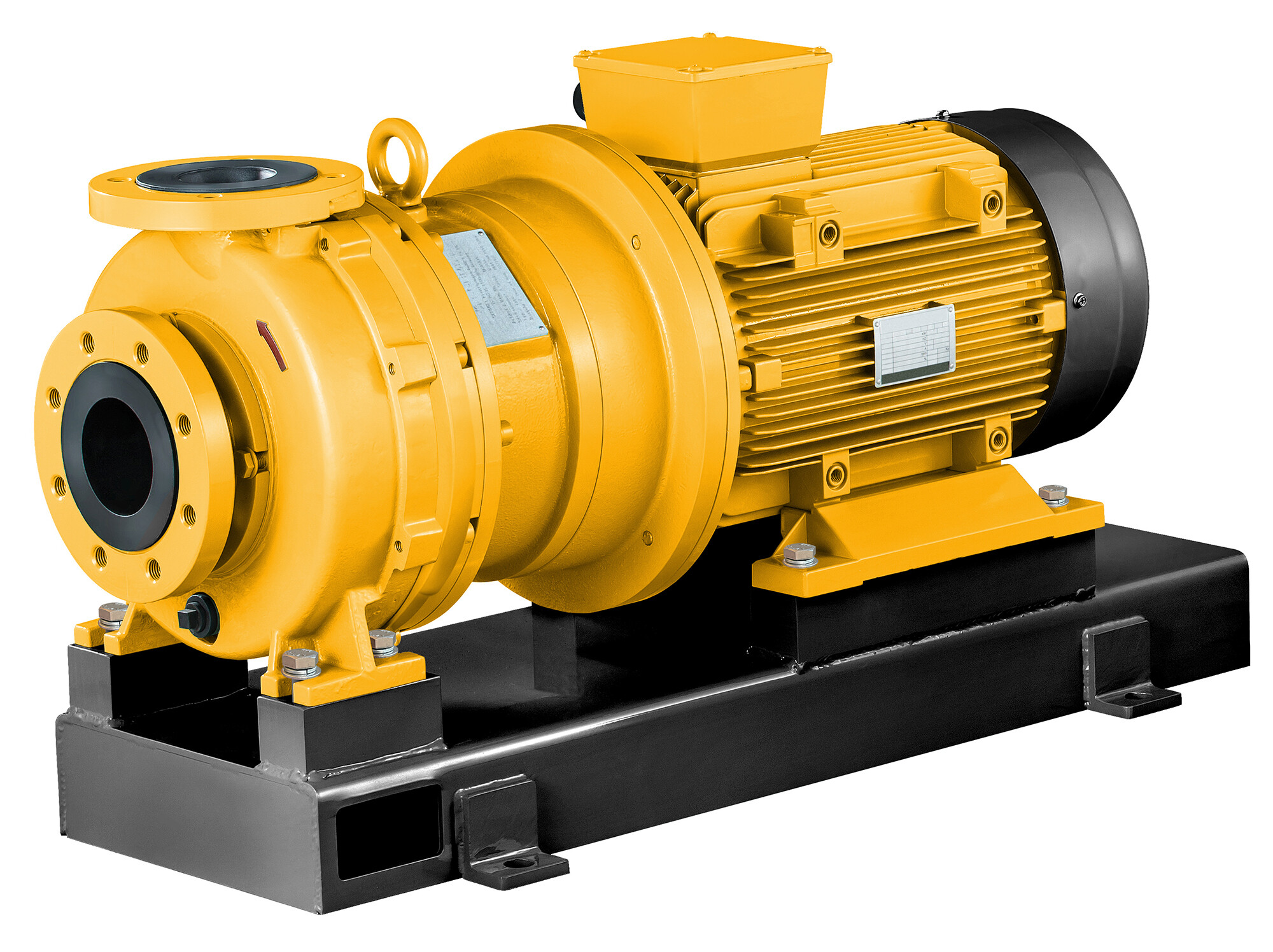

NEOChem Base Series
Industrial type, magnetic drive (without seal), ETFE-lined, max. 60–70 m³/h flow rate, max. 5 bar (max. fluid temperature 95 °C)

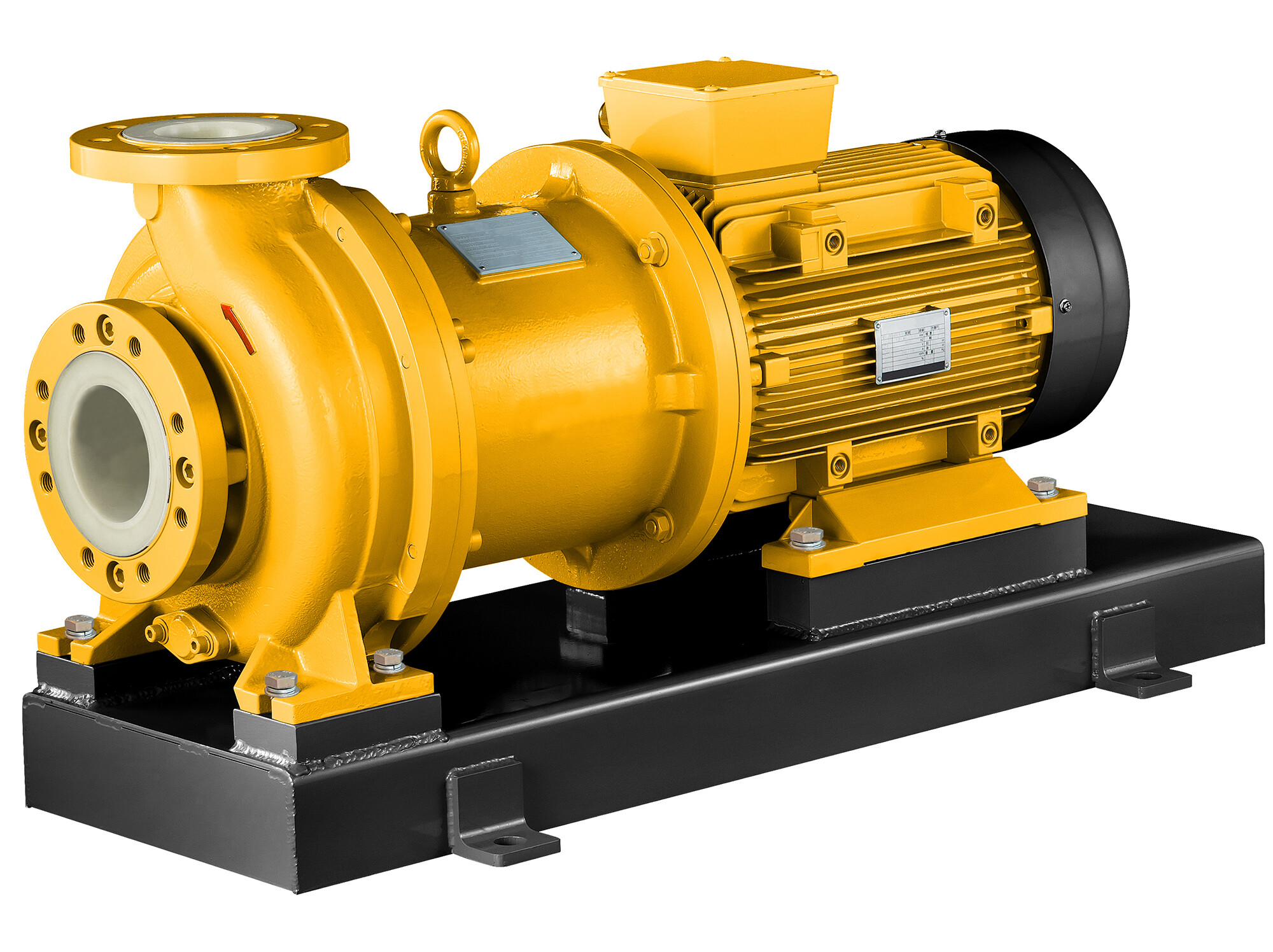

NEOChem Core Series
Heavy-duty type, magnetic drive (without seal), PFA-lined, max. 150 m³/h / max. 6 bar (max. fluid temperature 150 °C)

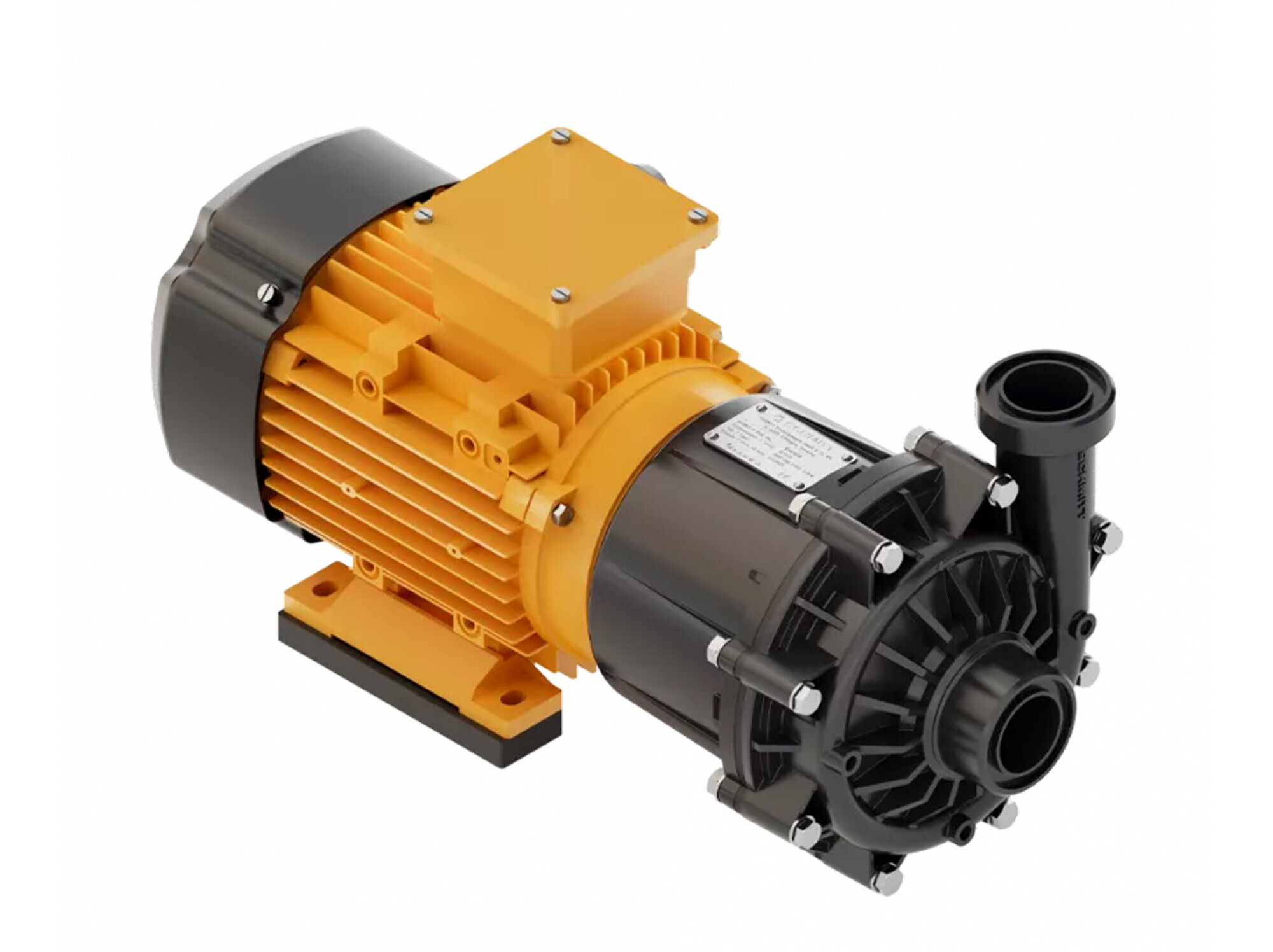

NHM Series
Magnetic drive (without seal), closed impeller (135 mm), 2¼” threaded suction/discharge connection options, max. 42 m³/h flow rate, max. 26 m head

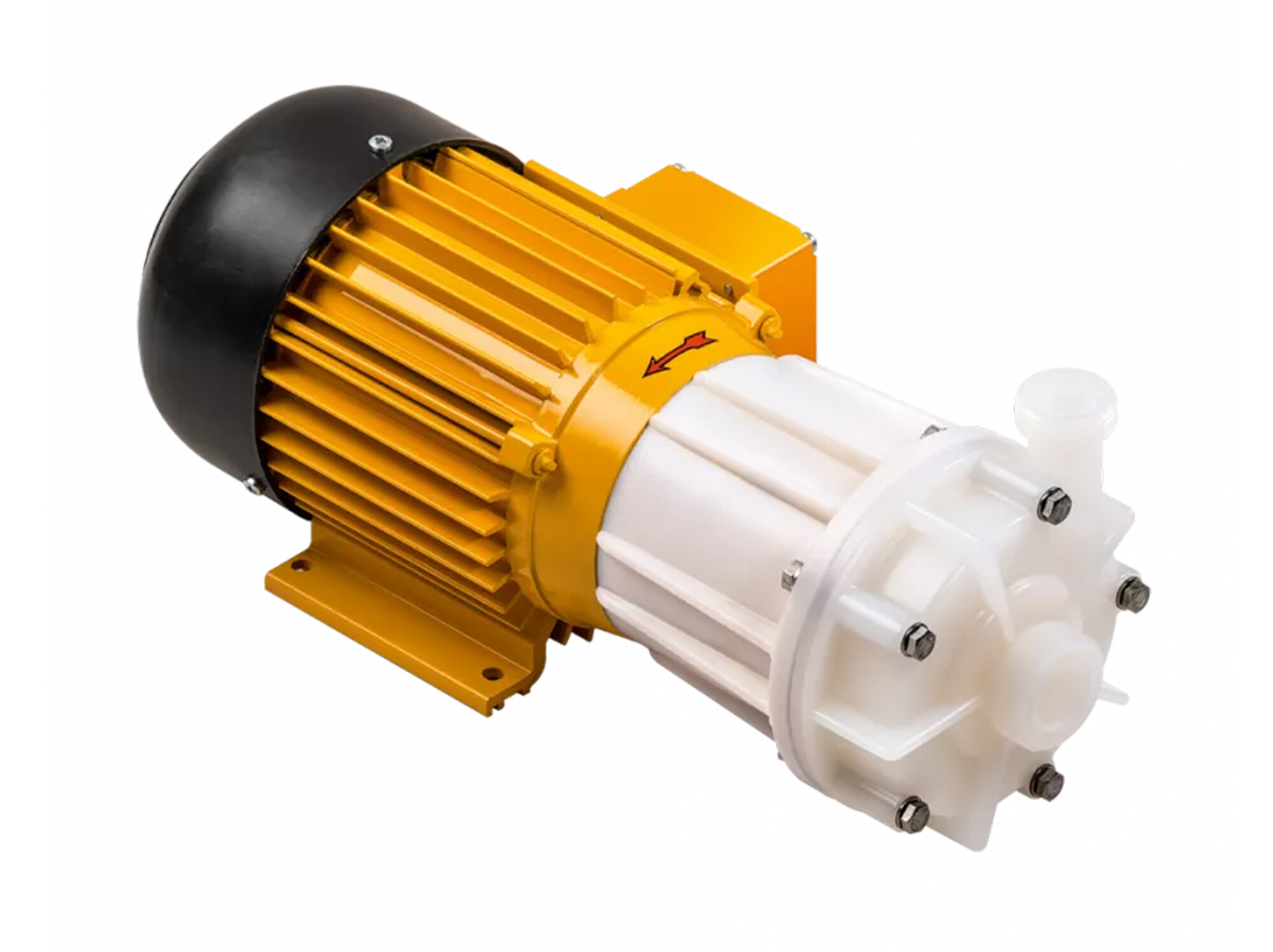

MPN Series
Magnetic drive (without seal), semi-open impeller, 1¼” – 2” threaded suction/discharge connection options, max. 42 m³/h flow rate, max. 26 m head

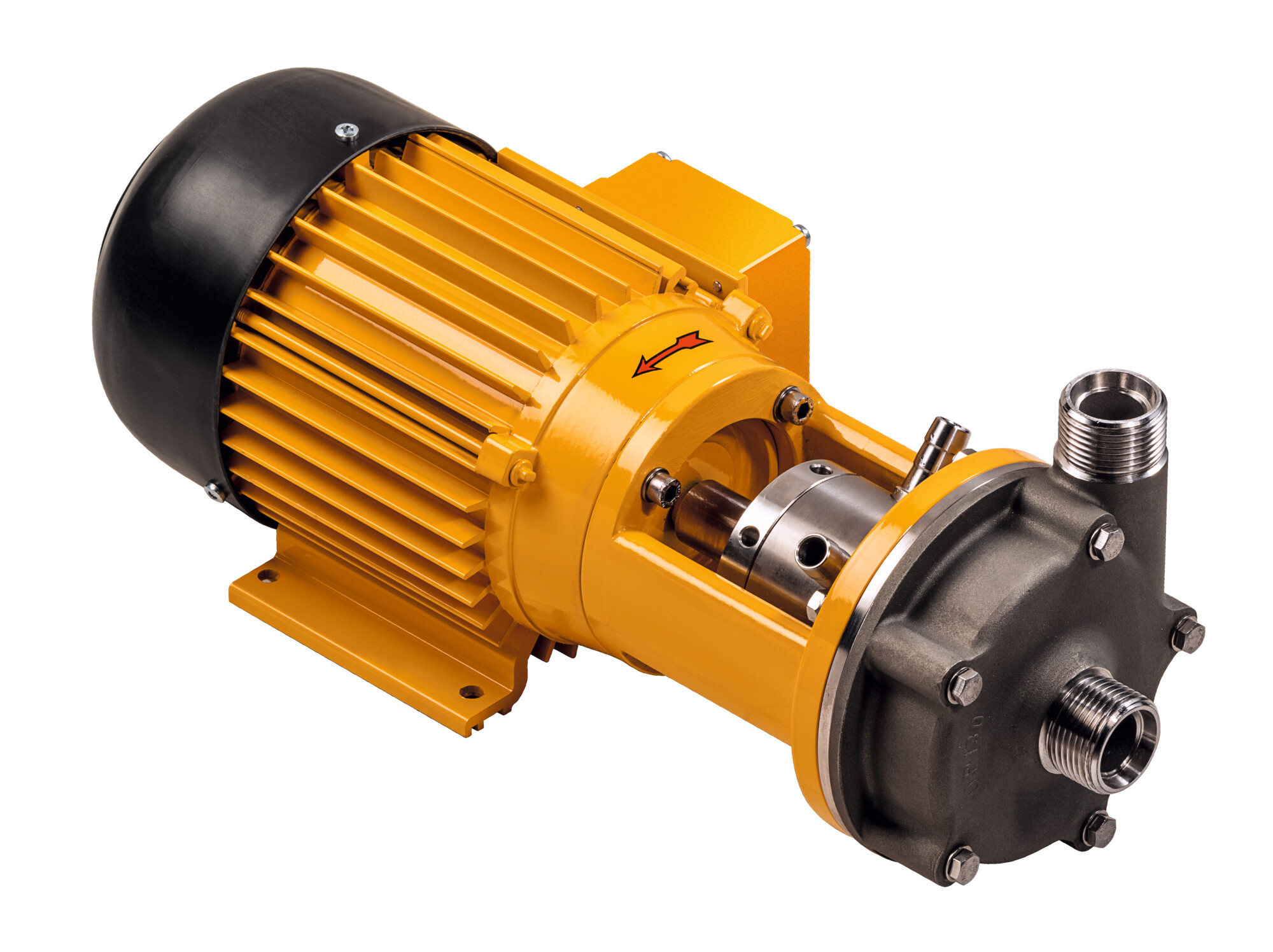

U Series
Stainless steel shaft with mechanical seal, semi-open impeller, G1¼” – G2¼” threaded suction/discharge connection options, max. 32 m³/h flow rate, max. 40 m head

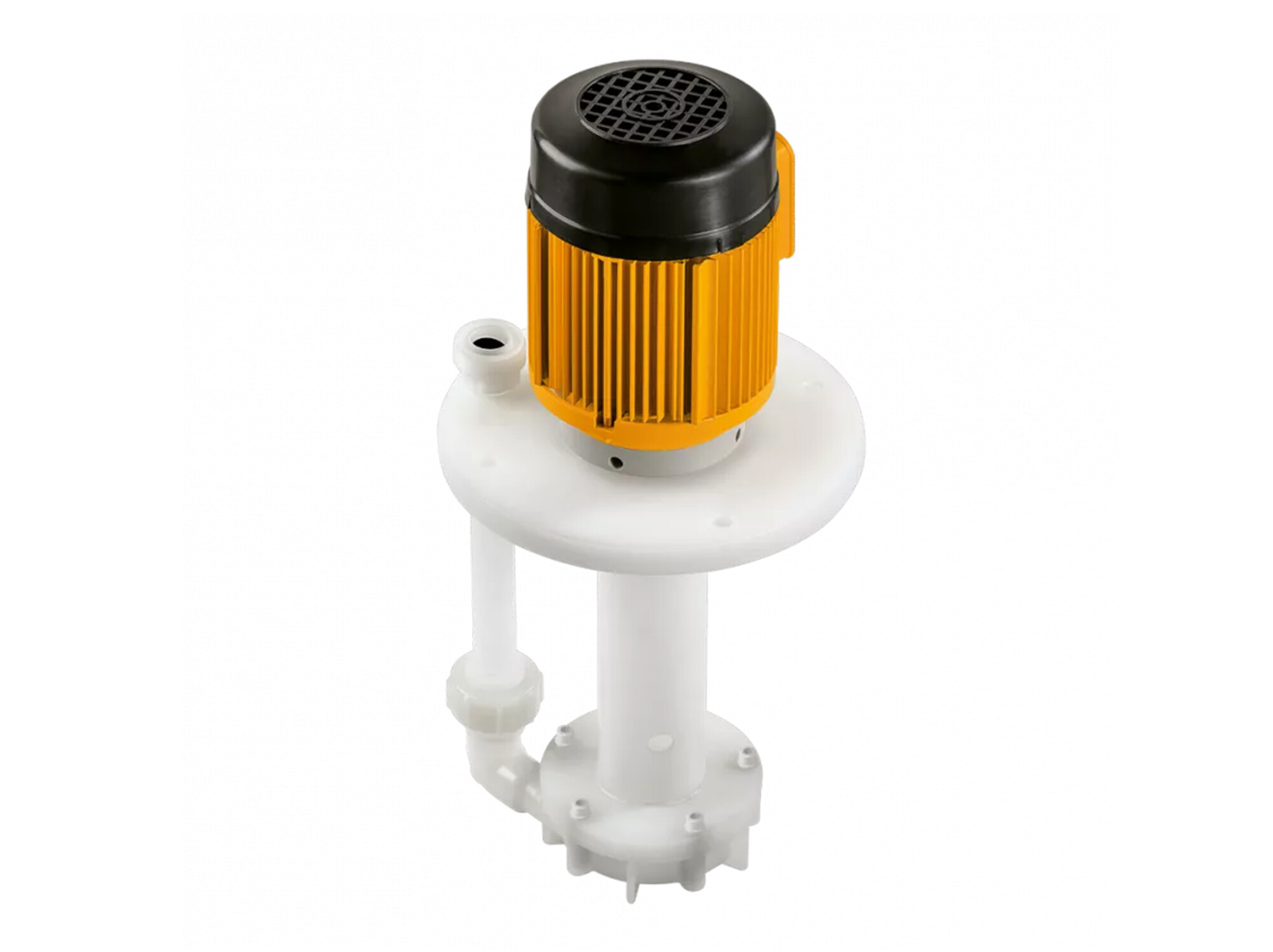

T Series
- High-quality PP or PVDF material
- Suitable for dry running
- Maintenance-free due to the absence of wearing parts
- Inlet strainer available to prevent coarse solids from entering the pump
- Flanged connections as standard, optional threaded connection options
